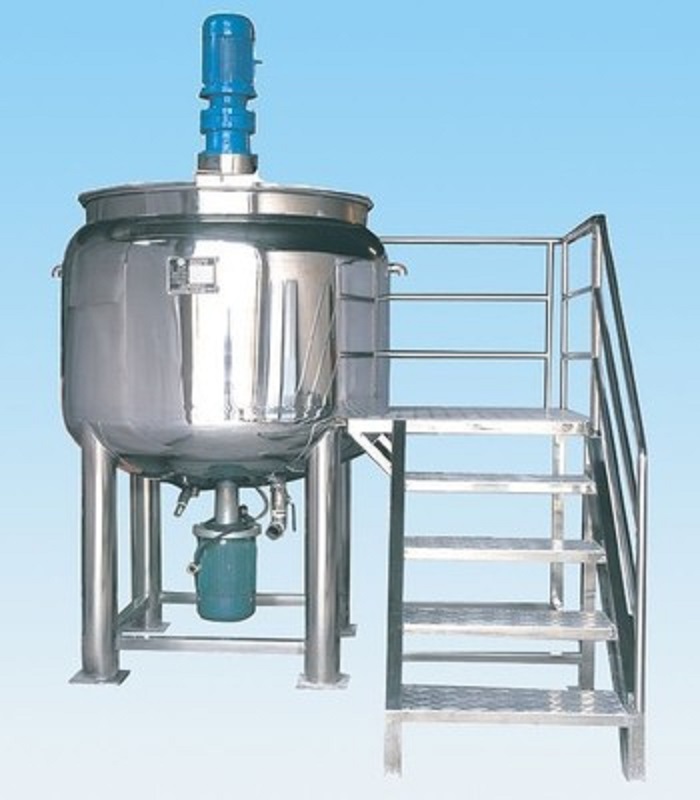

Liquid Washing Homogenizing Mixer

Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.

50L:
Quantity:
  • LW50 to LW5000
  • Li&Li
  • Can be customized
50L to 5000L Liquid Washing Homogenizing Mixer

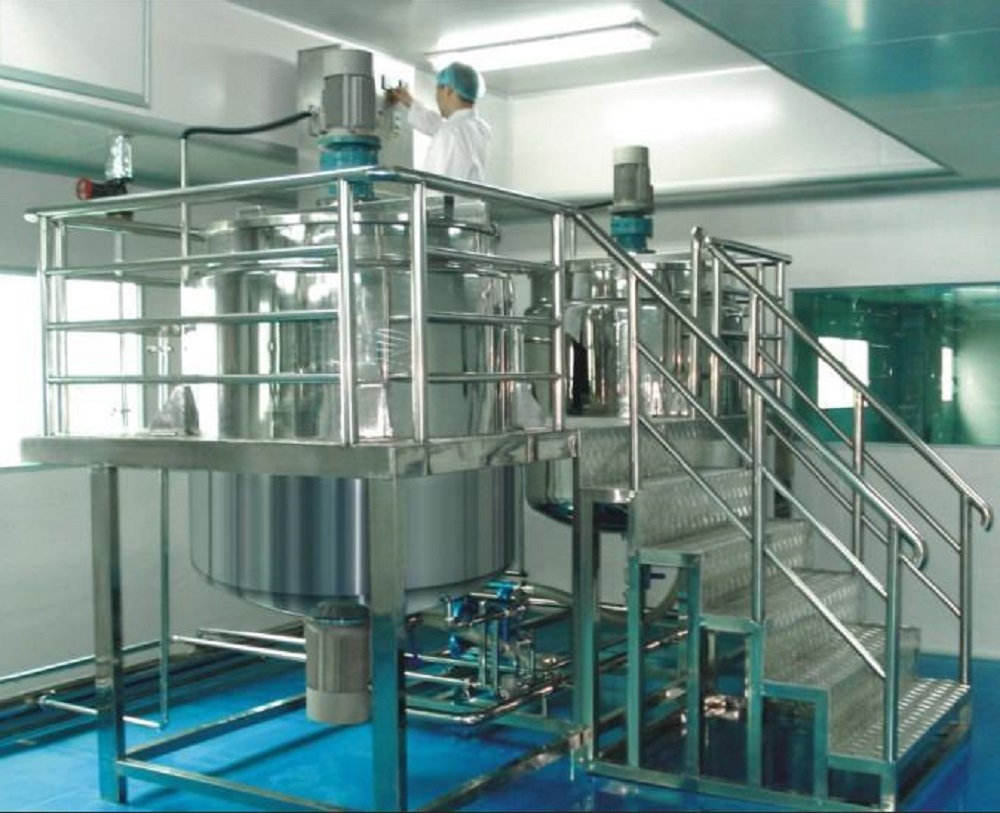

3_d1e859ebcfb4391b4601631195581384
Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.


Usage
This unite is available for manufacturing liquid products(such as detergent, shampoo, shower gel, ect) It integrates mixing, homogenizing, heating, cooling, pump discharging finished products and fefoaming(optional)functions. It is the ideal equipment for liquid products in domestic and international factories.

Performance And Features
The all-round wall scraping mixing adopts the frequency conventer for speed adjustment, so that high quality products with different process can satyisfy customer requirements.
The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and rapidly dissolve many indissoluble materials such as AES, AESA, LSA, ect. During the liquid detergent production process so as to save energy consumption and shorten production period.
The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
According to customer's requirement, the tank can heat and cool materials.
The heating way include steam heating & electric heating. Easy to discharge, bottom direct discharge or by transfer pump.

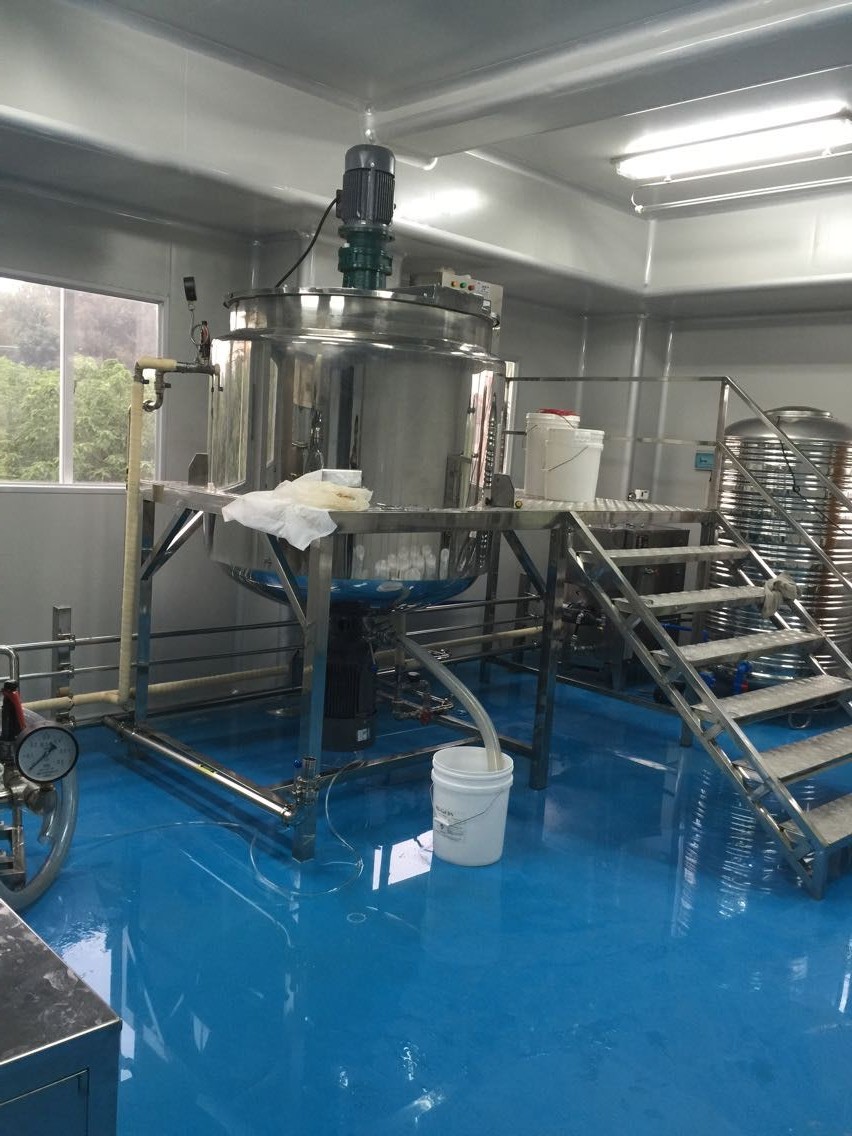

LW Liquid Washing Mixer

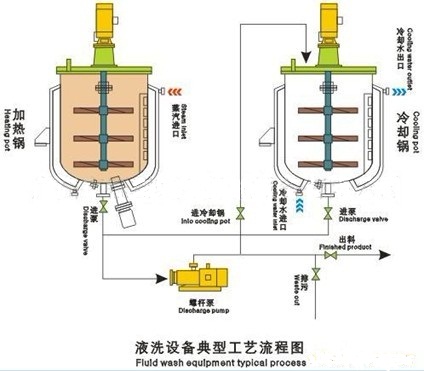

液洗锅流程图
Technology Parameter of LW Liquid Washing Homogenizing Mixer

Model
Capacity Homogenizing motor(kw) Stir motor(kw) Length(mm) Wide(mm) Height(mm) Total power(kw)
LW-200 200L 2.2-4 0.75 - - - 5
LW-300 300L 2.2-4 1.3 - - - 6
LW-500 500L 5.5-7.5 3 - - - 11
LW-800 800L 7.5-11 4 - - - 12
LW-1000 1000L 7.5-11 4 - - - 12
LW-2000 2000L 11-15 5.5 - - - 17
LW-3000 3000L 15-18 7.5 - - - 23
LW-4000 4000L 21 7.5 - - - 29
LW-5000 5000L 21 7.5 - - - 29


Technology Parameter of EL Liquid Washing Homogenizing Mixer
Serial
No.
Specification Voume Blending Power Blending Rotation Speed Homogenizing Power Homogenizing Rotation Speed Heating Method
L KW R/min KW R/min
1 ELJ-(X)-200 200 1.5 0-65 4 3000 Steam Heating or Electric Heating
2 ELJ-(X)-500 500 2.2 0-65 7.5 3000
3 ELJ-(X)-1000 1000 4 0-65 11 3000
4 ELJ-(X)-1500 1500 5.5 0-65 11 3000
5 ELJ-(X)-2000 2000 5.5 0-53 15 3000
6 ELJ-(X)-3000 3000 7.5 0-53 18.5 1500
7 ELJ-(X)-5000 5000 11 0-53 22 1500


Technology Parameter of PME Liquid Washing Homogenizing Mixer
Model Capacity
(L)
Mixing Power
(KW)
Mixing Speed
(r/min)
Homogenizing Power(KW) Homogenizing Speed(r/min) Heating Method
PME-200 200 0.75 0-65 2.2-4 3000 Steam Heating or Electric Heating
PME-300 300 0.75 0-65 2.2-4 3000
PME-500 500 2.2 0-65 5.5-7.5 3000
PME-1000 1000 4 0-65 7.5-11 3000
PME-2000 2000 5.5 0-53 11-15 3000
PME-3000 3000 7.5 0-53 18 3000
PME-5000 5000 11 0-42 22 3000

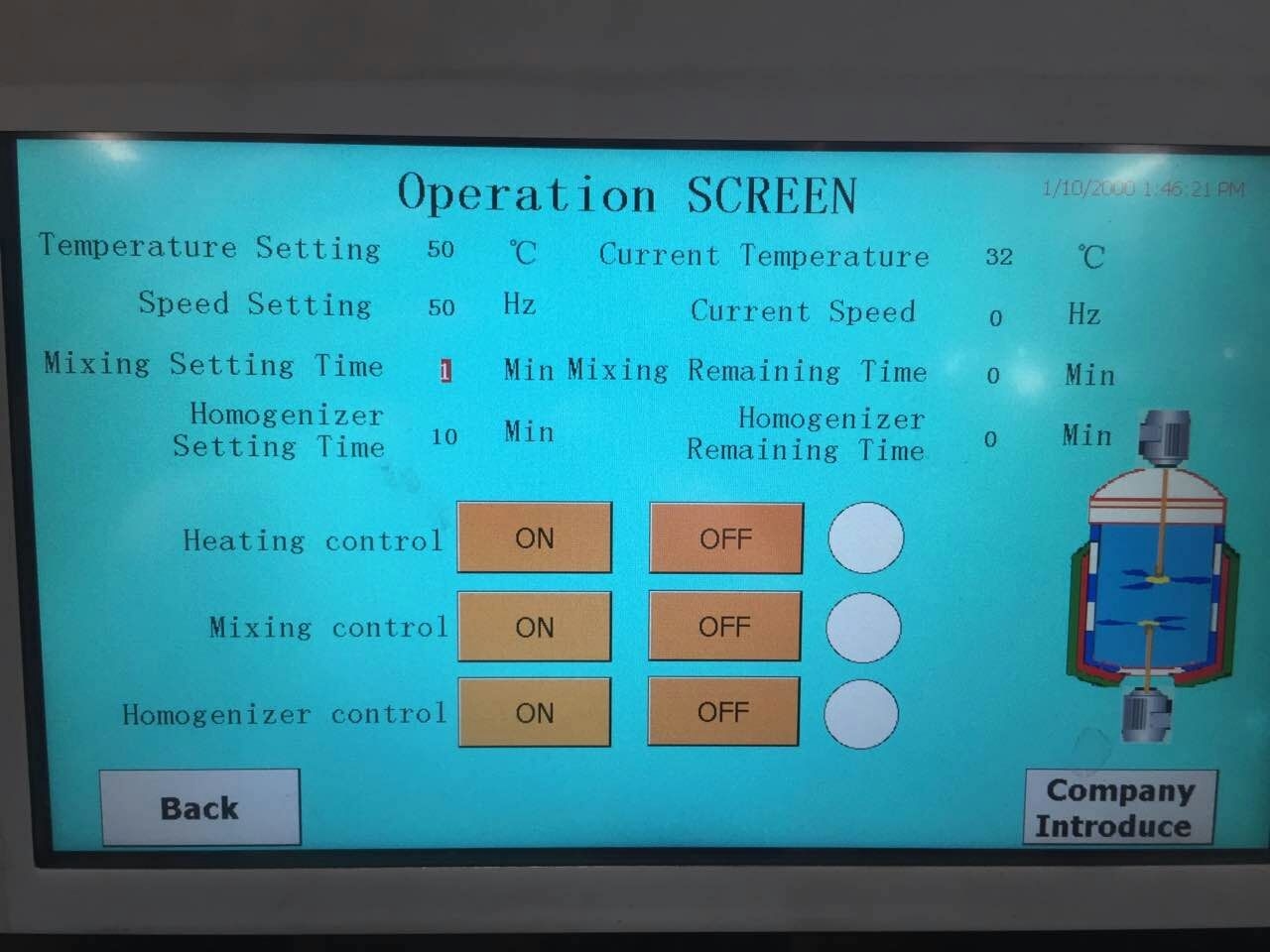

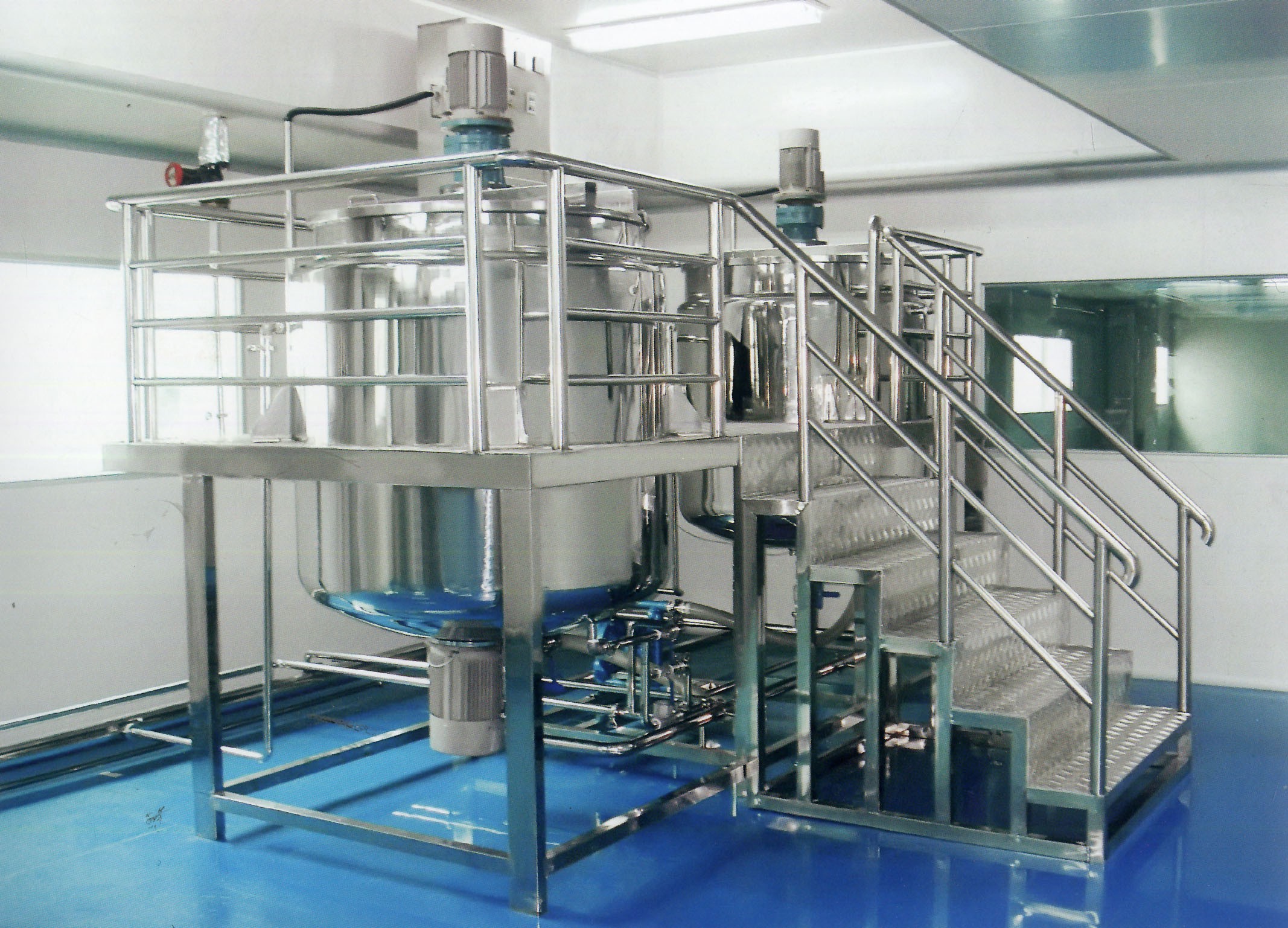

Catch9695(09-12-(11-01-14-41-39) 0-0
厂内图片2016年3,4月IMG_20160428_171309_HDR
