Outside Coil Chemical Reactor

It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.

50L:
Quantity:
  • 50 to 50000 liter
  • Li&Li
  • 8419899090
  • Can be customized
  • Low cost

Key words
Reactor  tank
Reactor kettle
Reaction kettle
Stainless  steel  tank
Mixing  tank

Main Body Material : Stainless Steel 304/316
Main Body Flange Material : Stainless Steel 304/316
Limpet Coils Material : Stainless Steel 304
Inside Cooling Coils Mat. : Stainless Steel 316L
Stirrer Solid Shaft Material :Stainless Steel 316L
Supporting Brackets : Mild Steel

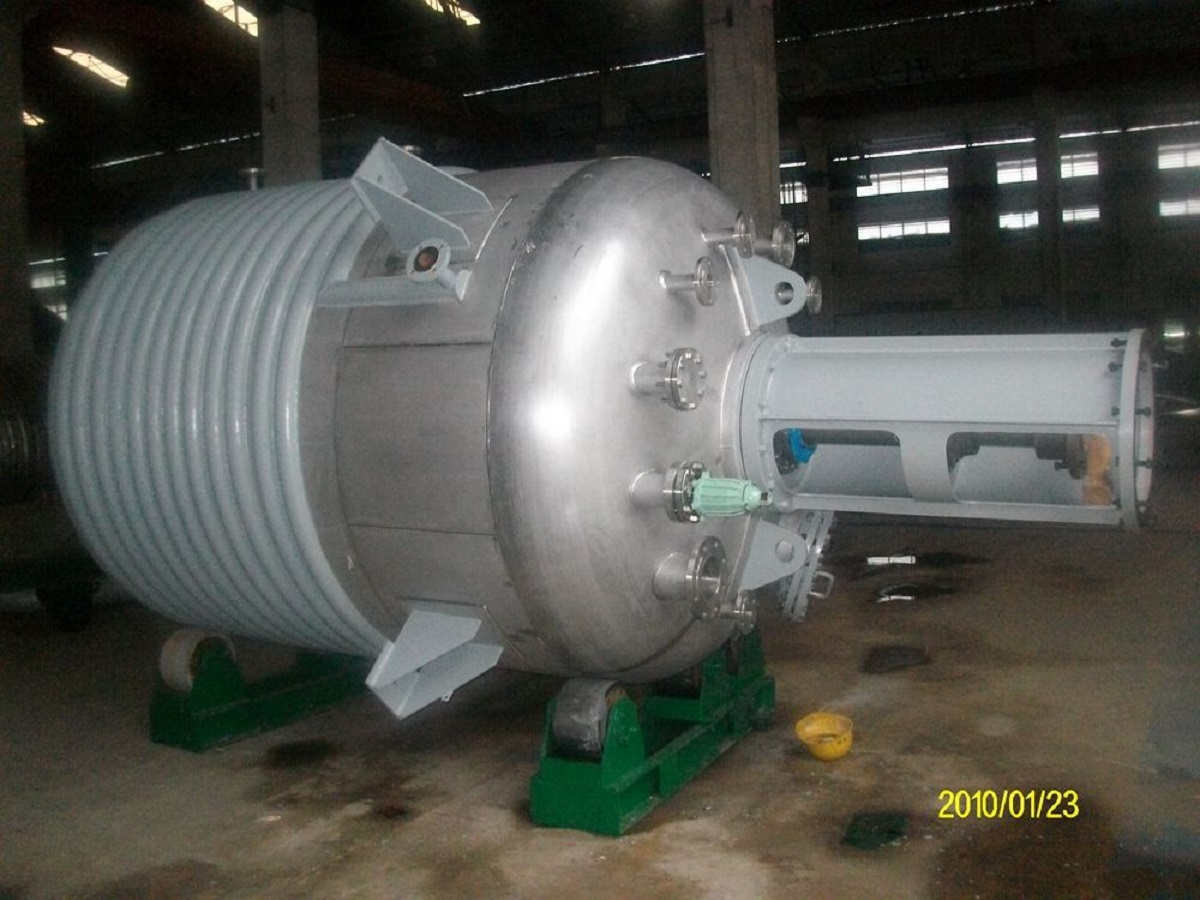

The Ouside Coil Reactor
33683441278709166035370627236276030
Reactor usage

It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.

Reactor characteristics
1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.
2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and its mirror-polished to Ra≤ 0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.
3. The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.


Technical parameters

specification

Capacity
(L)

Tube Dia
(mm)

Outside dish tube heat transfer area

Power
 (Kw)

speed of agitator
(r/min)

FP1000

 1000

1100

2.867

2.2-5.5

50-80

FP1500

1500

1200

3.537

3-5.5

50-80

FP2000

2000

1300

4.165

4-7.5

50-80

FP3000

3000

1500

5.569

4-7.5

50-80

FP6000

6000

1800

10.323

5.5-15

50-80

FP10000

10000

2200

50

11-22

50-80

FP10000

20000

2400

101

11-55

50-80

2016-03-08 103517

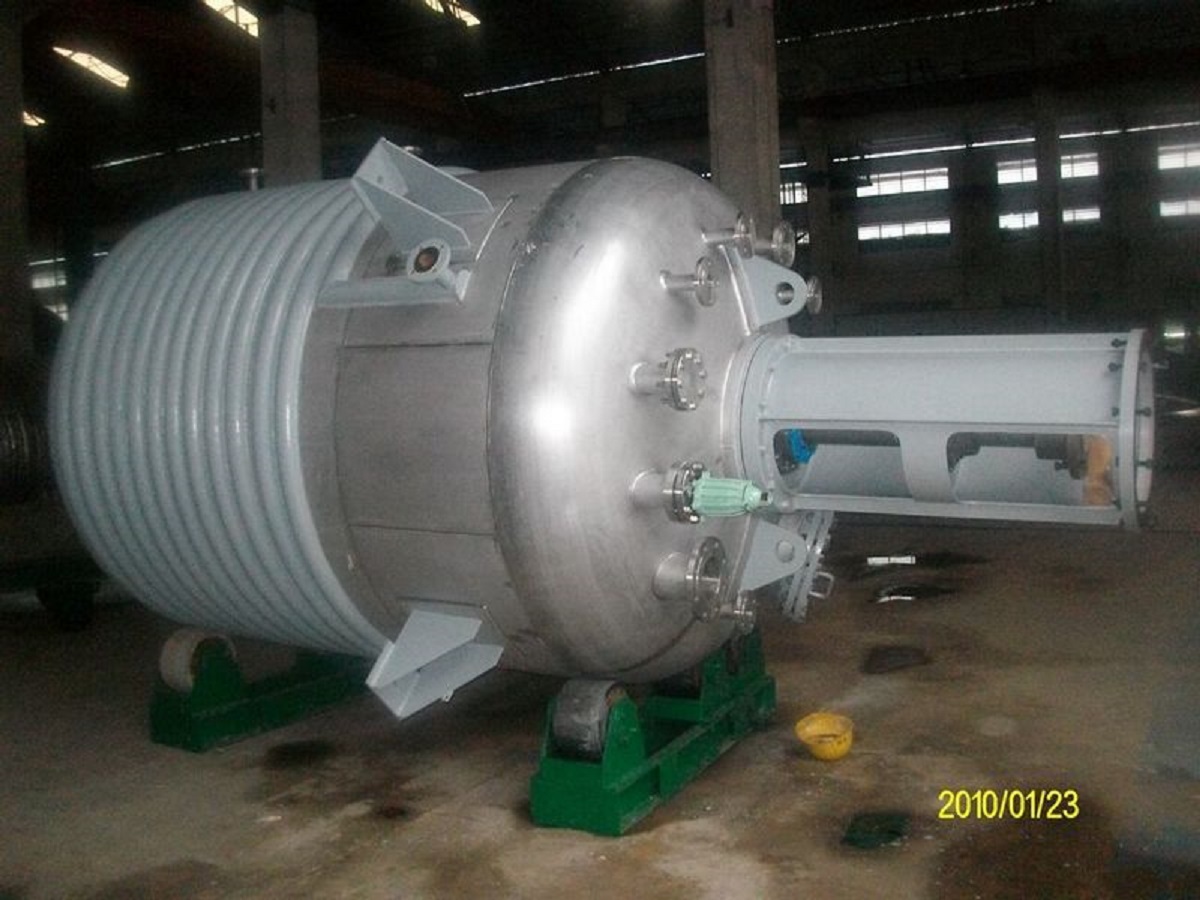

反应釜

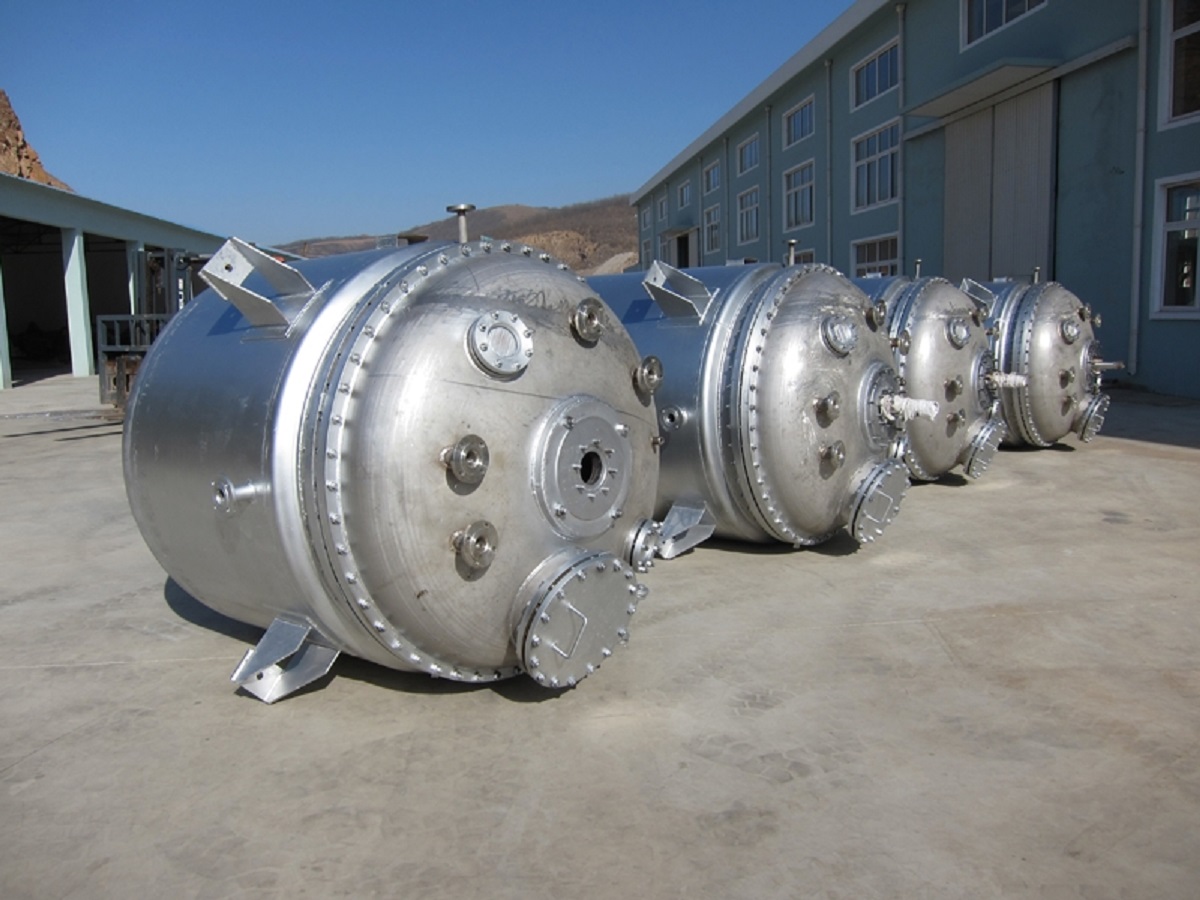

mgwDuNBDM_1372041790
Why choose our product?
1. Professioal and rich experience
2. Good quality cheap price
3. CE &2008: 9001 certification&SGS certificate
4. Delivery on time & responsible after sale service

Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. Logo printing: We can print any logo as per your requires on the case.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.
6. Packages: Available for ploy bag and carton box

About our company

Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
