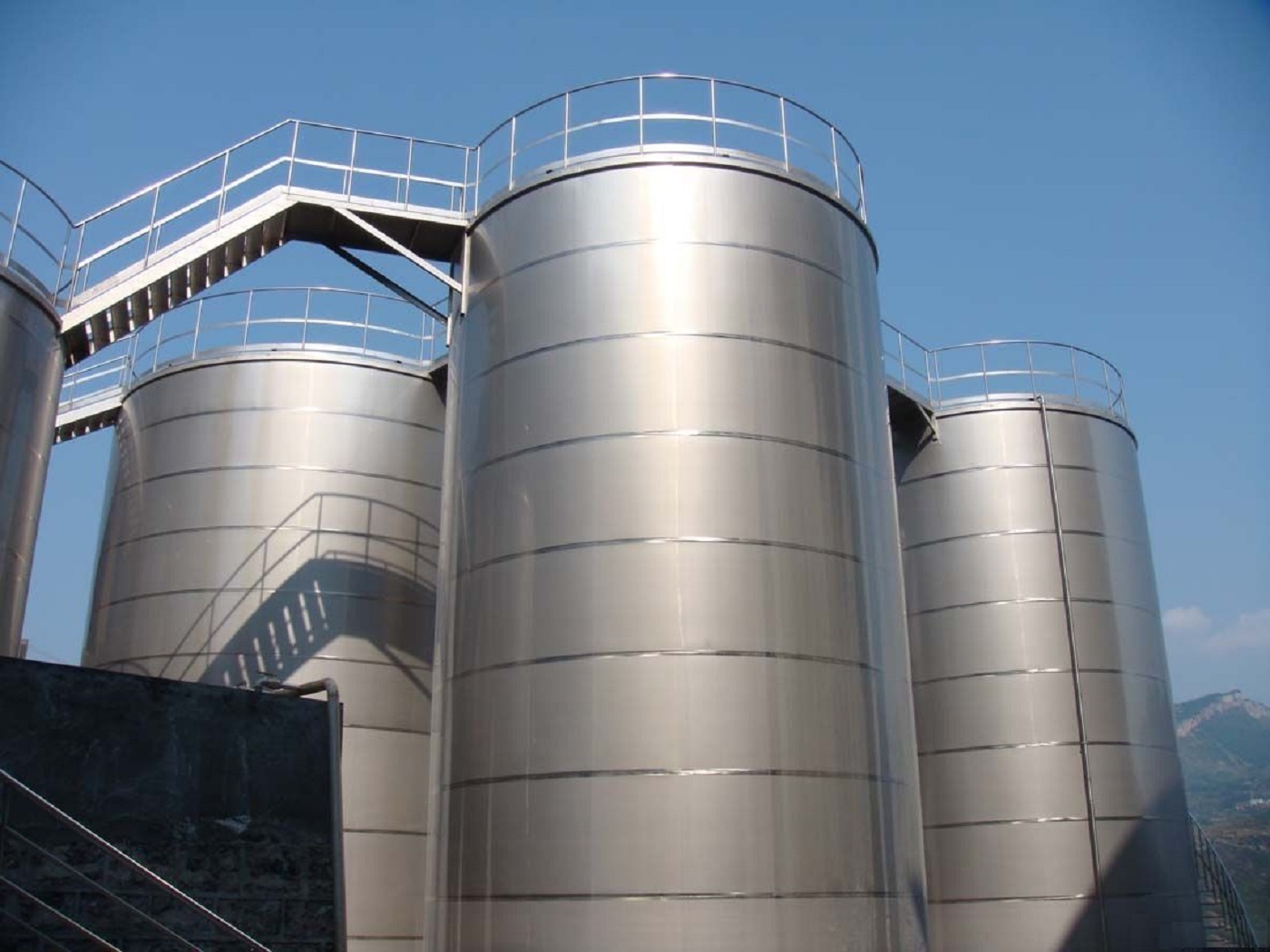

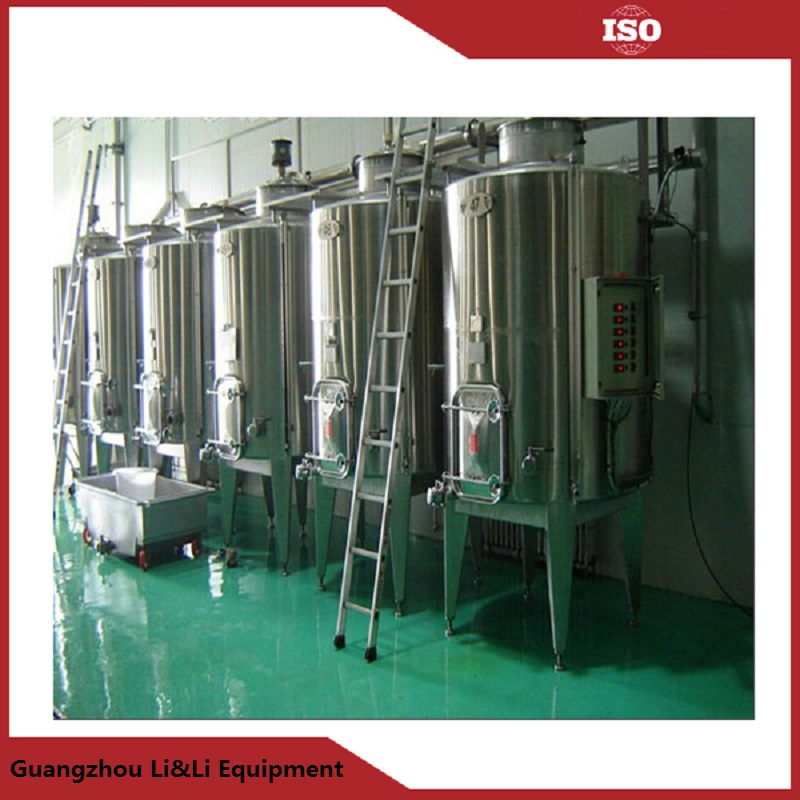

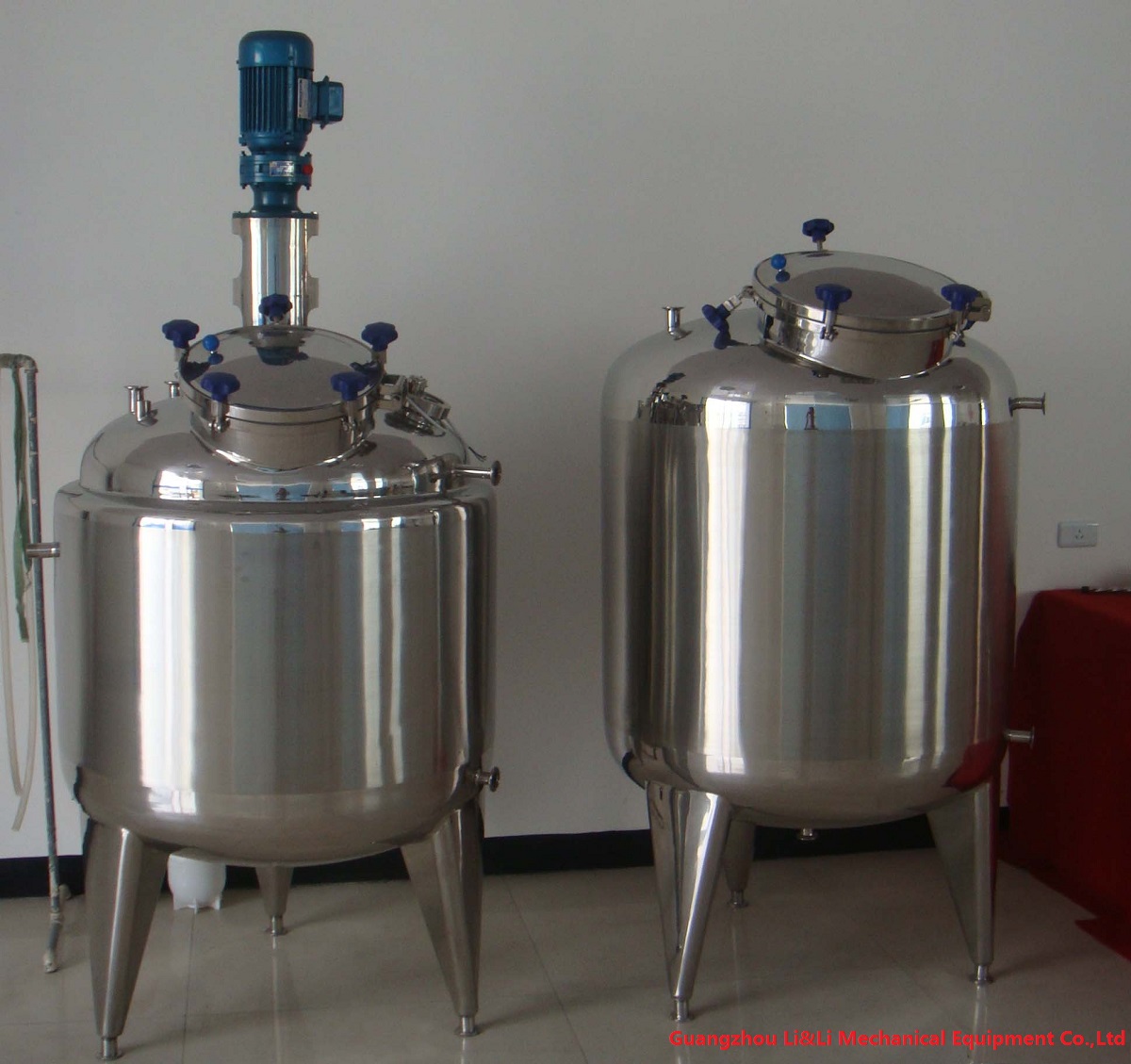

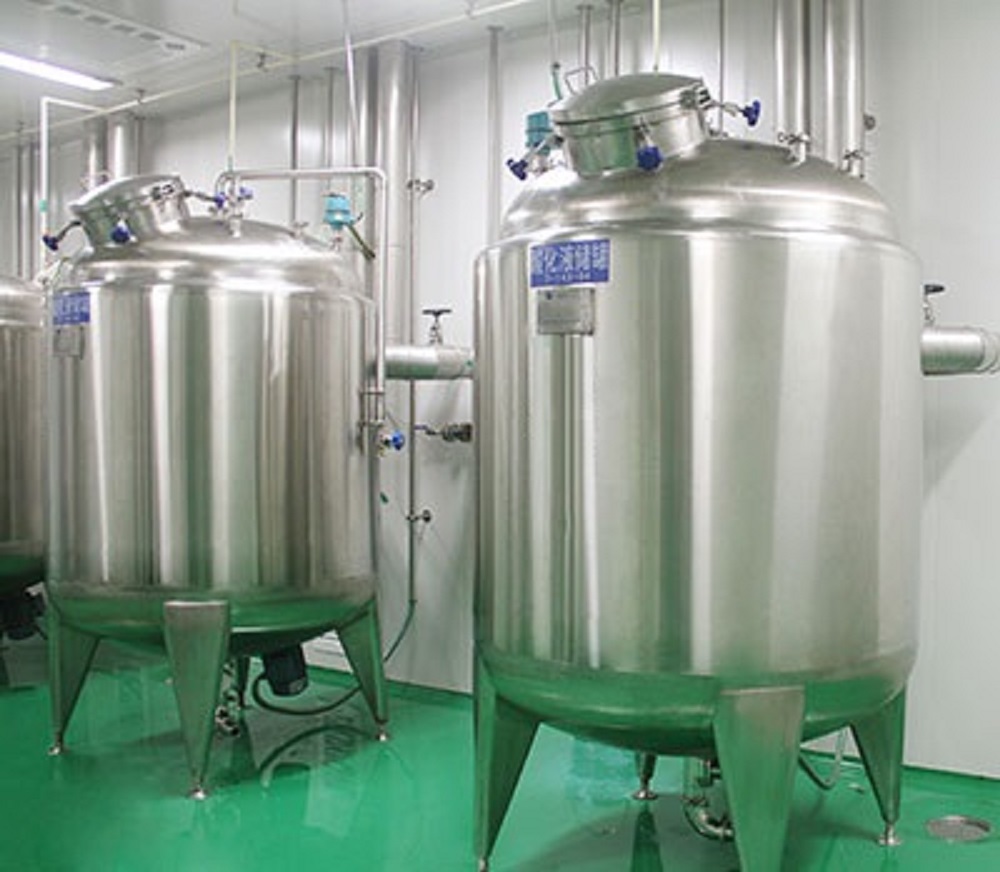

Stainless steel tanks are widely use for cosmetics, petroleum, chemical industry, coating, ink, pharmaceutical, food industries, store a variety of liquid and powder material, vertical, horizontal, mobile storage tank.
According to storage capacity, the storage tanks are classified into tanks of 1-5000m3, For storage tanks with storage capacity of more than 20 m3. It is suggested to use outdoor storage tanks. The storage tank is made of SUS316L, SUS304 or Q235 and has good heat preservation performance. The accessories are as follows: inlet and outlet, manhole, thermometer, liquid level indicator, high and low liquid level alarm, fly and insect prevention spiracle, aseptic sampling vent, meter, CIP cleaning spraying head.
| 50L: | |
|---|---|
| Quantity: | |
| Nominal volume | Real Capacity | Nominal diameter | Height | Inlet & Outlet diameter | Exhaust port diameter | Manhole | Level mouth diameter |
| 2m3 | 2.05m3 | 1200mm | 1820mm | 50mm | 50mm | 400mm | 25mm |
| 3m3 | 3.05m3 | 1400mm | 2000mm | 50mm | 50mm | 400mm | 25mm |
| 5m3 | 5.05m3 | 1700mm | 2250mm | 50mm | 50mm | 400mm | 25mm |
| 10m3 | 10.5m3 | 2200mm | 2650mm | 50mm | 50mm | 400mm | 25mm |
| 20m3 | 20.5m3 | 2800mm | 3260mm | 50mm | 50mm | 400mm | 25mm |
| 30m3 | 30.5m3 | 3200mm | 3740mm | 80mm | 50mm | 500mm | 25mm |
| 50m3 | 50.5m3 | 3200mm | 6230mm | 100mm | 50mm | 500mm | 25mm |
| 100m3 | 100.5m3 | 5400mm | 4500mm | 100mm | 50mm | 500mm | 25mm |
| 200m3 | 200.5m3 | 6600mm | 6000mm | 100mm | 50mm | 500mm | 25mm |

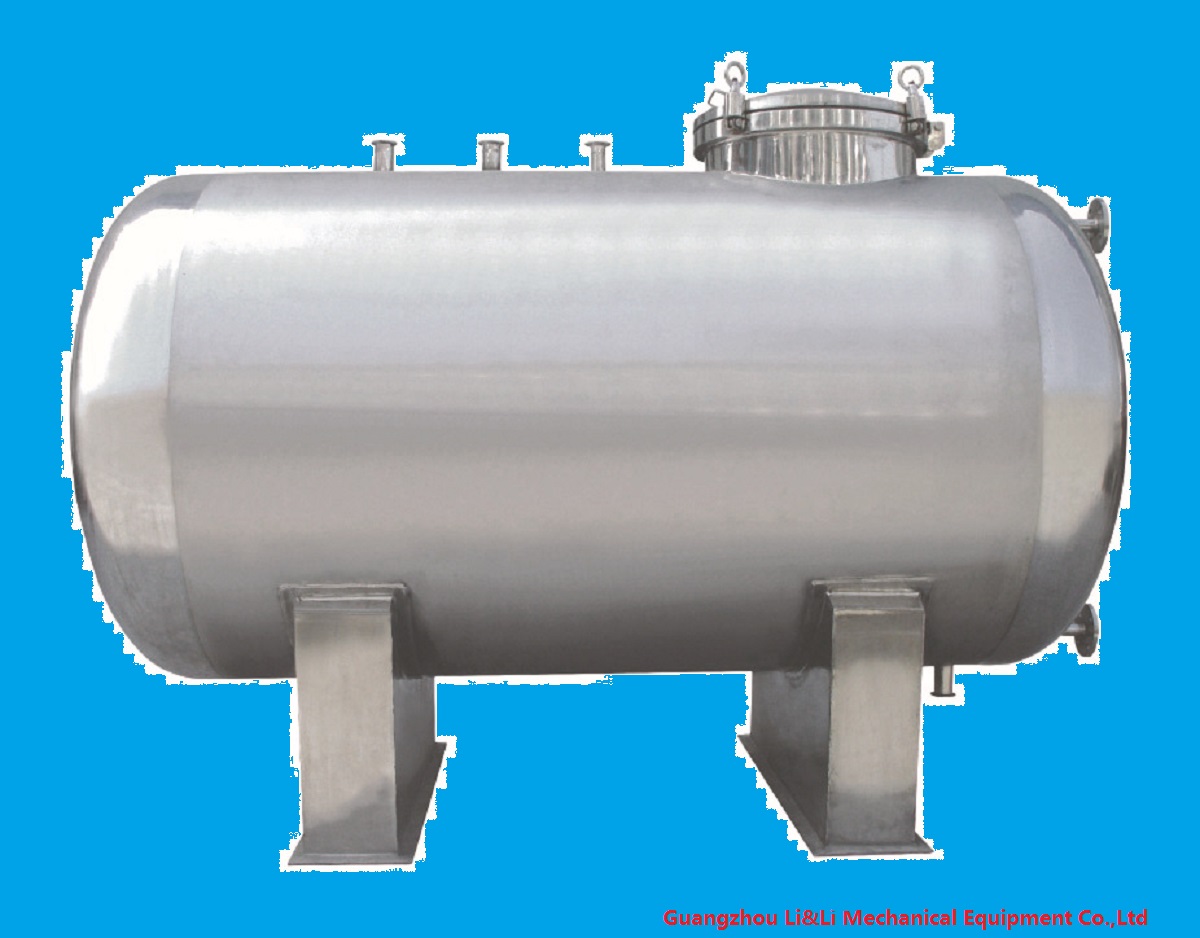

| Nominal volume | Real Capacity | Nominal diameter | Length | Inlet diameter Dg | Spout diameter Dg | Manhole Dg | Number of seat | Remark | |
| 2m3 | 2.05m3 | 1000mm | L=2720mm L1=1500mm L3=200mm | 50mm | 50mm | 400mm | 2 | The design conditions for the normal temperature and pressure, accept custom. | |
| 3m3 | 3.05m3 | 1200mm | L=2850mm L1=1550mm L3=250mm | 50mm | 50mm | 400mm | 2 | ||
| 5m3 | 5.05m3 | 1400mm | L=3500mm L1=1920mm L3=300mm | 76mm | 76mm | 400mm | 2 | ||
| 10m3 | 10.5m3 | 1800mm | L=4230mm L1=2300mm L3=300mm | 76mm | 76mm | 500mm | 2 | ||
| 20m3 | 20.5m3 | 2200mm | L=5630mm L1=3080mm L3=400mm | 76mm | 76mm | 500mm | 2 | ||
| 30m3 | 30.5m3 | 2400mm | L=7200mm L1=3600mm L3=500mm | 89mm | 89mm | 500mm | 3 | ||
| 50m3 | 50.5m3 | 2800mm | L=8860mm L2=2660mm L3=500mm | 89mm | 89mm | 500mm | 3 | ||
| 80m3 | 80.5m3 | 3200mm | L=1085mm L2=3300mm L3=600mm | 89mm | 89mm | 500mm | 3 | ||
| 100m3 | 100.5m3 | 3200mm | L=1334mm L2=4140mm L3=600mm | 89mm | 89mm | 500mm | 3 | ||
