| Quantity: | |
|---|---|
There are several types of tube and shell heat exchangers, such as fixed tube plate steam-water heat exchanger, steam-water heat exchanger with expansion joint, steam-water heat exchanger with floating head, U-shaped tube and shell steam-water heat exchanger, wave type tube and shell steam-water heat exchanger, and segmented water-water heat exchanger. The main control parameters of shell-and-tube heat exchanger are heating area, hot water flow, heat exchange and heat medium parameters.

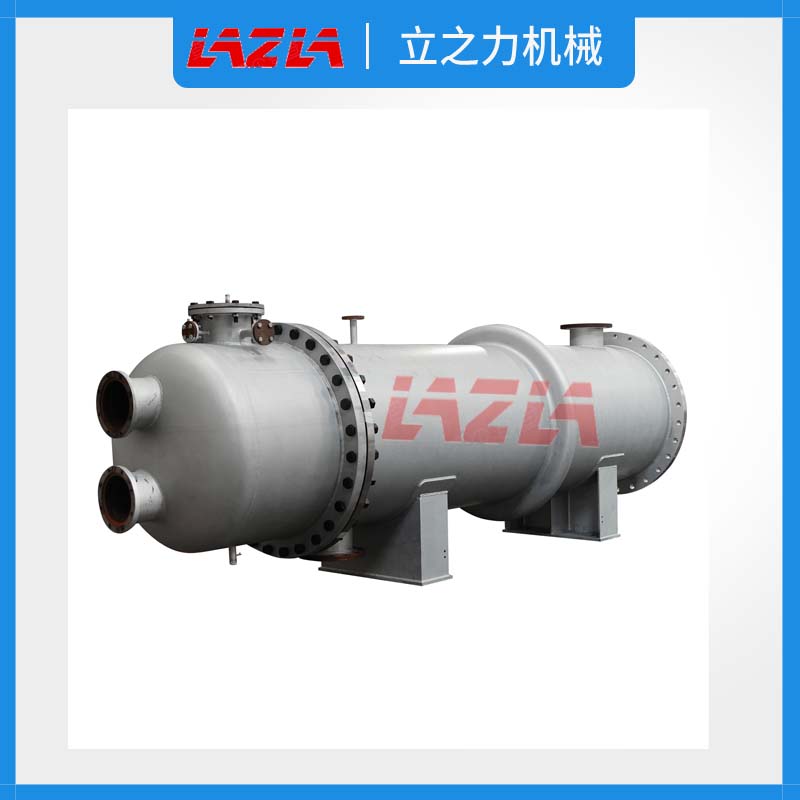

Shell and tube heat exchanger
| Specification (㎡） | Length （mm） | Outside diameter （mm） | Weight (kg) |
| 2 | 1000 | 219 | 80 |
| 3 | 960 | 273 | 120 |
| 5 | 1600 | 273 | 200 |
| 10 | 2200 | 400 | 400 |
| 15 | 2100 | 500 | 550 |
| 20 | 2100 | 500 | 800 |
| Note: Technical data related to other models or non-standard designs are provided separately | |||
