| Quantity: | |
|---|---|
50 to 50000 liter
Li&Li

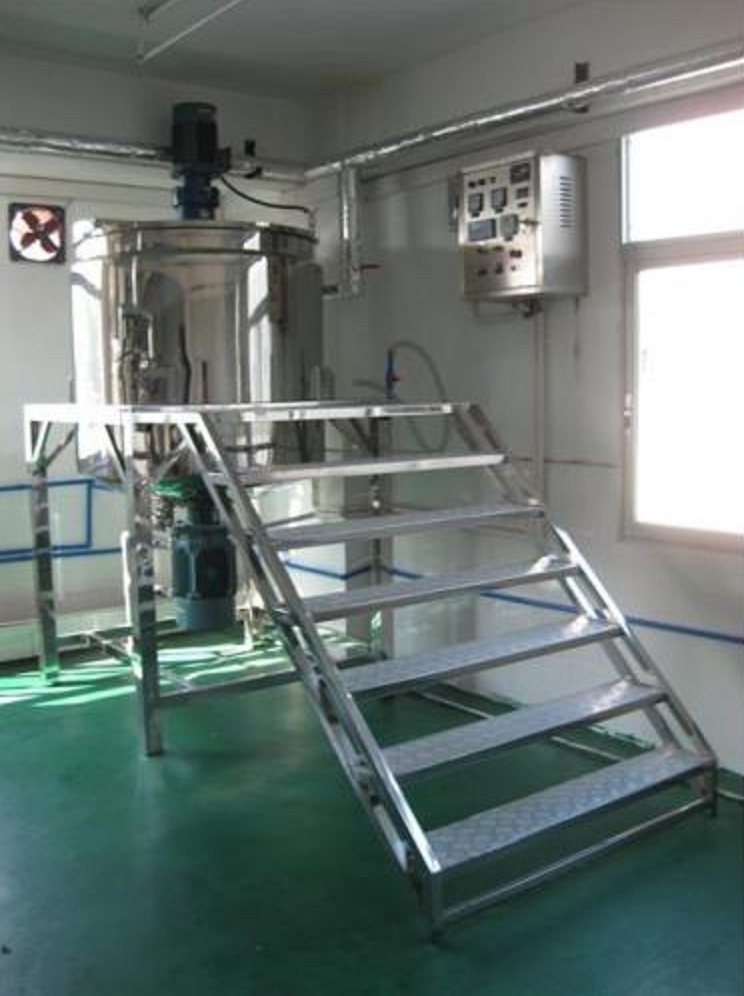

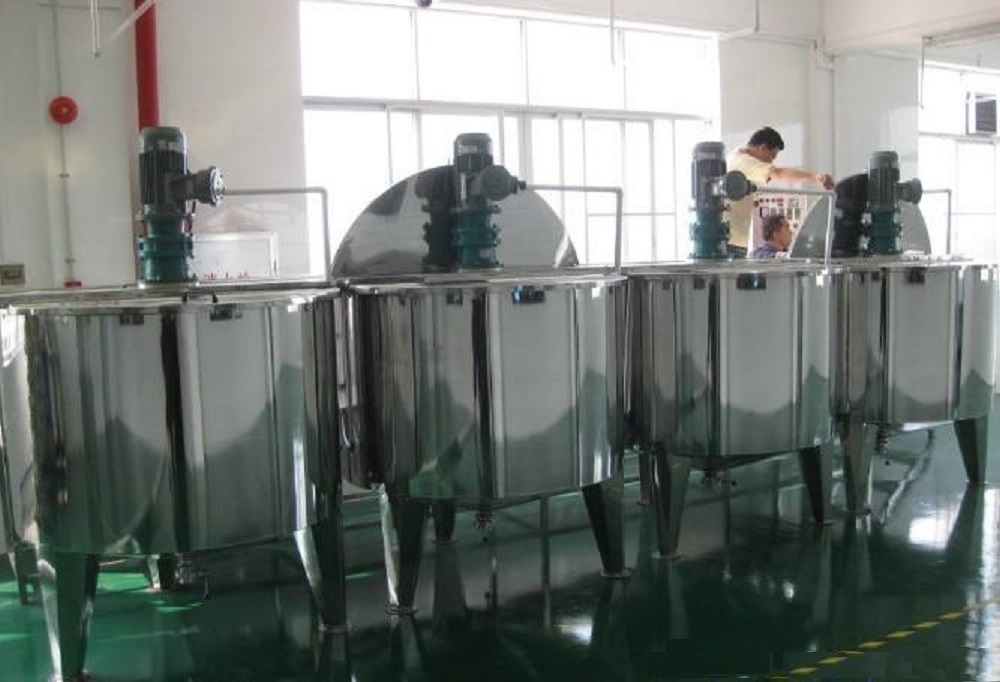

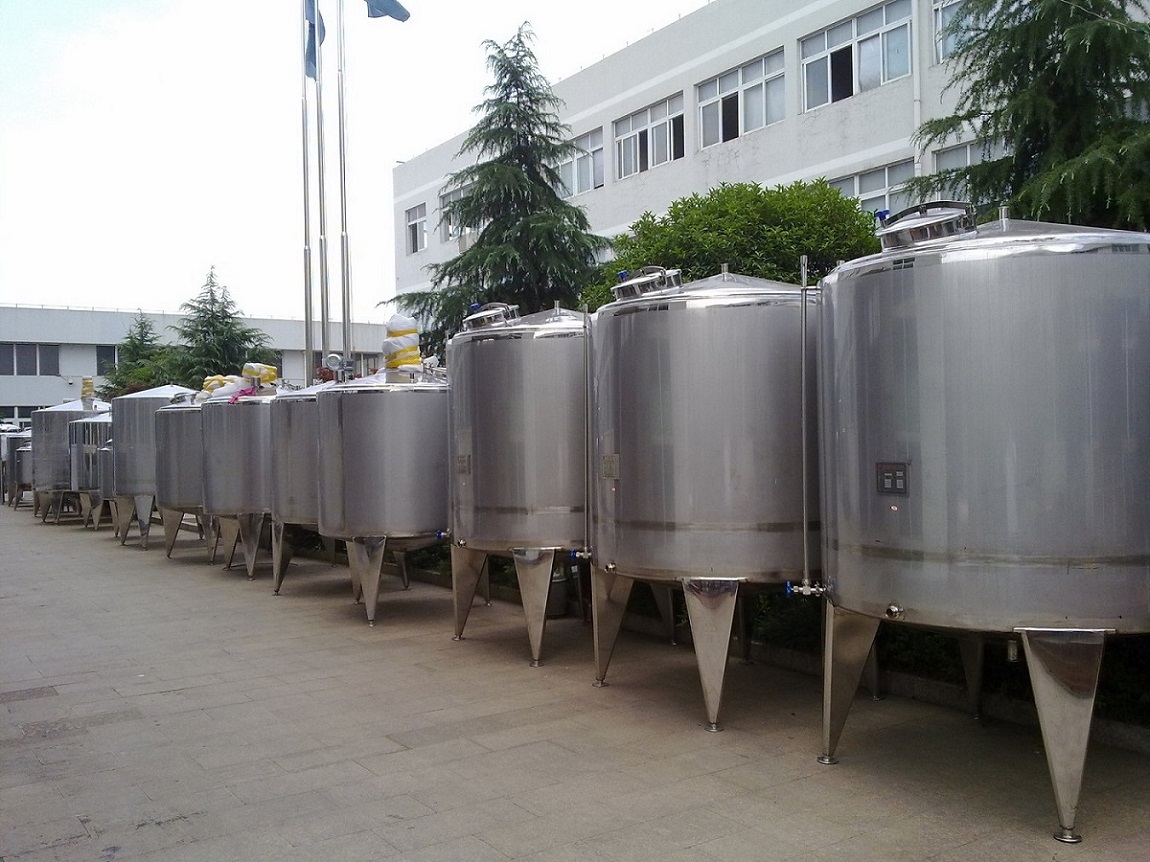

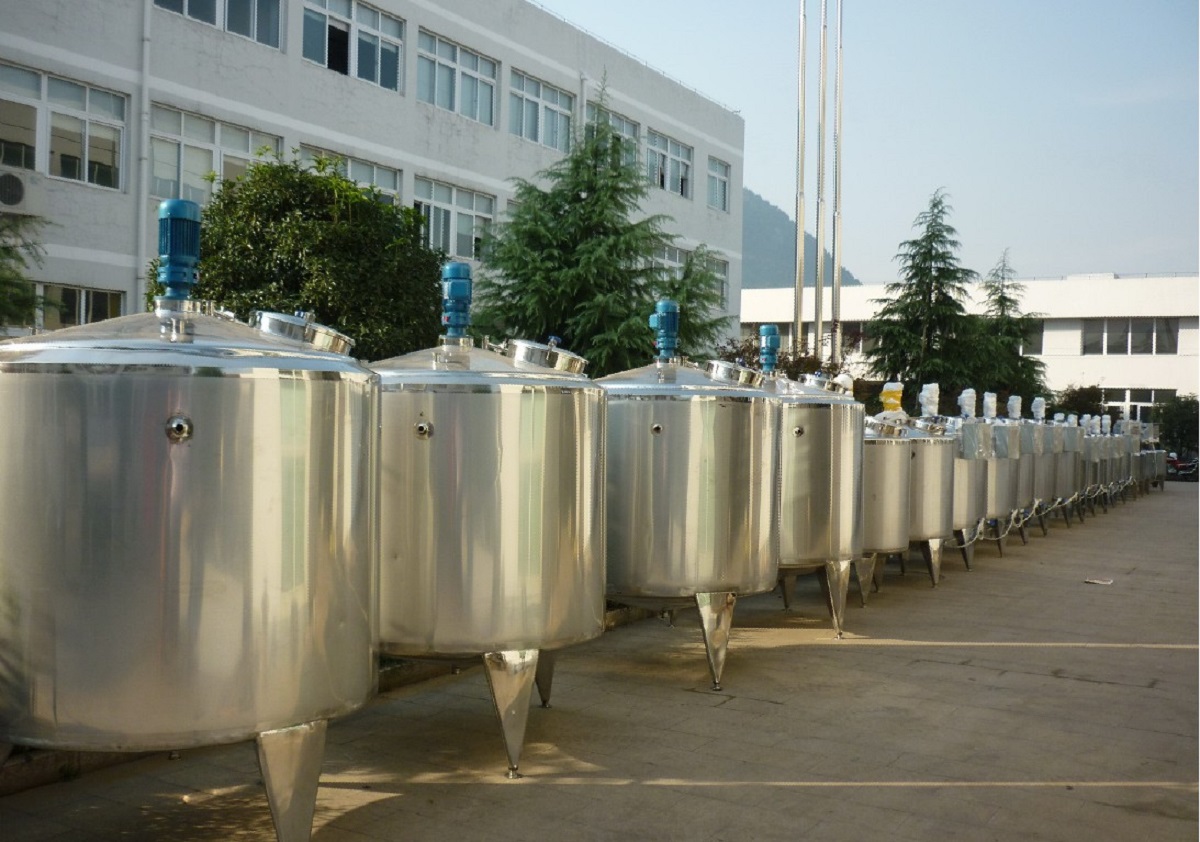

Product Name: Stainless Steel Mixing Tank
Automation: Manual, semi-automatic, full-automatic,can be customized.
Capacity: 50-5000L
Suitable Temp.: 0-100 celsium degree or higher upon requirement
Power: 380V/50Hz/3 Phase or220V/50Hz/1 Phase can be customized
Control System: Push button/PLC/touch screen; Optional
Material: 304/316L ,optional
Structure: 3 layers(inner bladder, jacket, insulation layer), 2 layers,single layer upon requirement
Surface: Inner/outer polished, outer: Drawbench polished
Stirring method: One direction mixing or two direction(optional)
Stirrer type: Can be selected from anchor type, impeller type, frame type, high speed shear, magnetics type and etc.
Application: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc.,
Usage&Application
Stainless steel stirred tank widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, ink, oil, printing and dyeing, environmental protection, oil, alcohol, hospitals and other industries, various types of liquid filtration, rough filtration, fine filtration, clarification ideal equipment purification treatment.
Stainless steel mixing tank is my company's own development of new products, with no leakage, fully enclosed, corrosion-resistant, energy-saving features. Due to its non-contact torque transmission to replace the static seal dynamic seal, to solve the other shaft seal can not overcome the problem of leakage, the entire media and agitation in sterile health status to operate, pharmaceutical, fine chemicals, cosmetics and biological engineering industry ideal replacement products.
Suitable material under a certain pressure mechanical stirring flammable, explosive, toxic, odor and other dissolved materials, sterilization, fermentation process takes a long time (over 24 hours) constant moving equipment. More suitable for biological engineering in the production process does not allow any trace leaks and contaminated equipment.
Technical Parameter
| Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer | Motor power | Blending speed |
(L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
500 | 840*1000 | 2750 | 60 | 38 | 0.55 | Common rotation speed 960/1440rpm ; stepless speed reducer or dual-speed reducer are also available |
600 | 920*1000 | 2850 | 60 | 38 | 0.55 | |
700 | 990*1000 | 2850 | 60 | 38 | 0.55 | |
800 | 950*1220 | 3000 | 60 | 38 | 0.55 | |
900 | 1010*1220 | 3000 | 60 | 38 | 0.55 | |
1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 | |
1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 | |
2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 | |
3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 | |
4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 | |
5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 | |
6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 | |
7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 | |
8000 | 2060*2440 | 5000 | 60 | 51 | 3 | |
9000 | 2180*2440 | 5050 | 60 | 51 | 3 | |
10000 | 2300*2440 | 5050 | 60 | 51 | 3 | |
12000 | 2270*3000 | 5600 | 60 | 51 | 4 | |
15000 | 2530*3000 | 5700 | 60 | 51 | 4 | |
20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
Performance&Features
1.Tank and tank with the same or different forms of head structure, in the form of a jacket or a single combination of different requirements noted in a device structure.
2 .magnetic stirring device into a magnetic stirrer and under magnetic stirring on a magnetic stirrer suitable capacity (3-50m3) and large-torque device. Under magnetic stirring with capacity of less than (3m3) and equipment with high hygiene requirements.
3. interface with the international standard ISO standard quick chuck, the material is imported 316L or 304, the inner surface of the mirror-polished Ra ≤0.28 μm, the outer surface of the matte or mirror polished.
4 .Material: cylinder 304 and 316L (optional). 5 level gauge with universal flat level gauge, level gauge glass, level gauge static pressure sensor, ultrasonic level meter for selection.
Why choose our product?
1. Professioal and rich experience
2. Good quality cheap price
3. CE &2008: 9001 certification&SGS certificate
4. Delivery on time & responsible after sale service
Our service
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. Logo printing: We can print any logo as per your requires on the case.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.

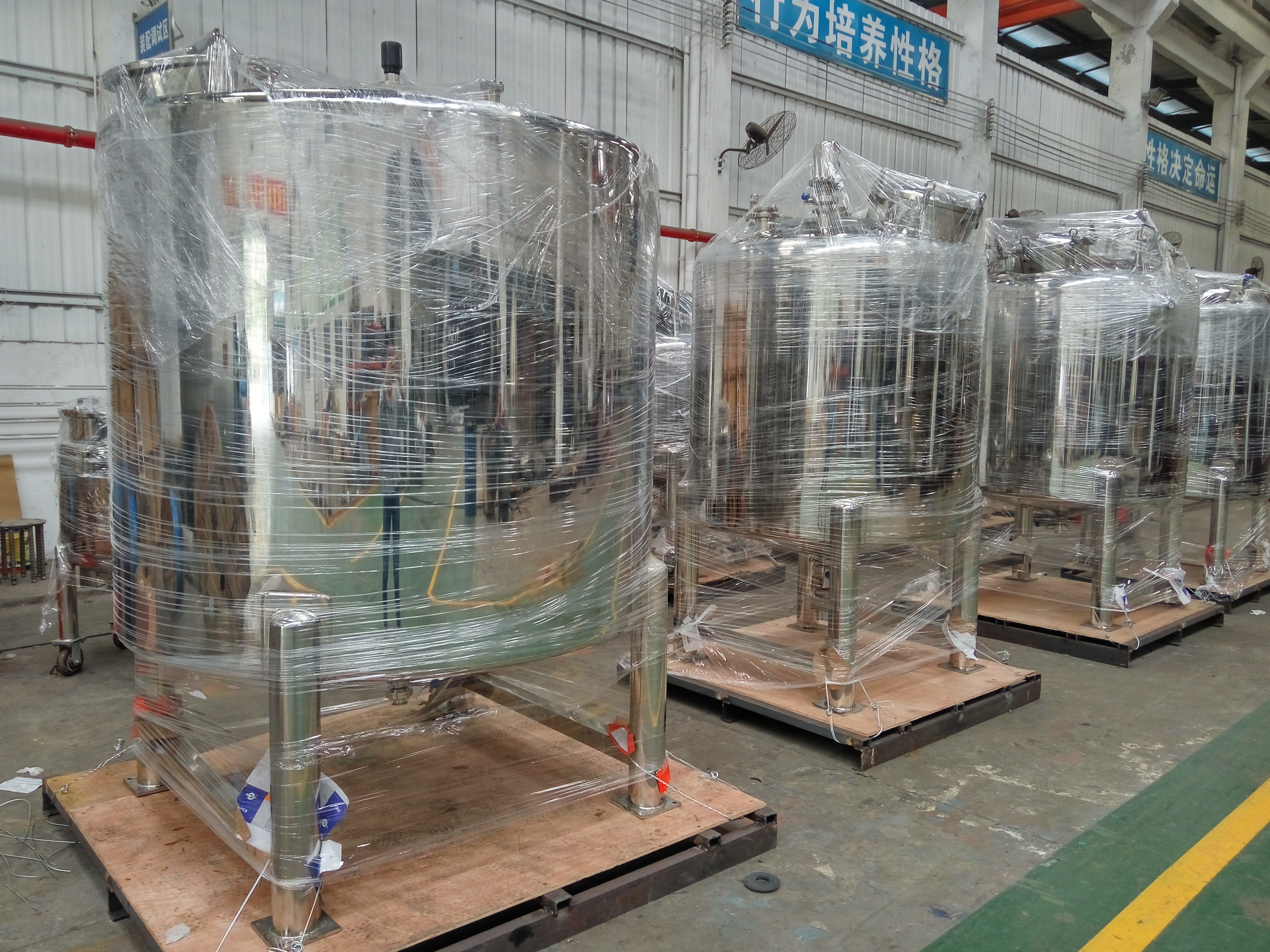

6. Packages: Available for ploy bag and carton box.
About us
Li&Li merchanical(GZ) corporation Co,.Ltd.Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
