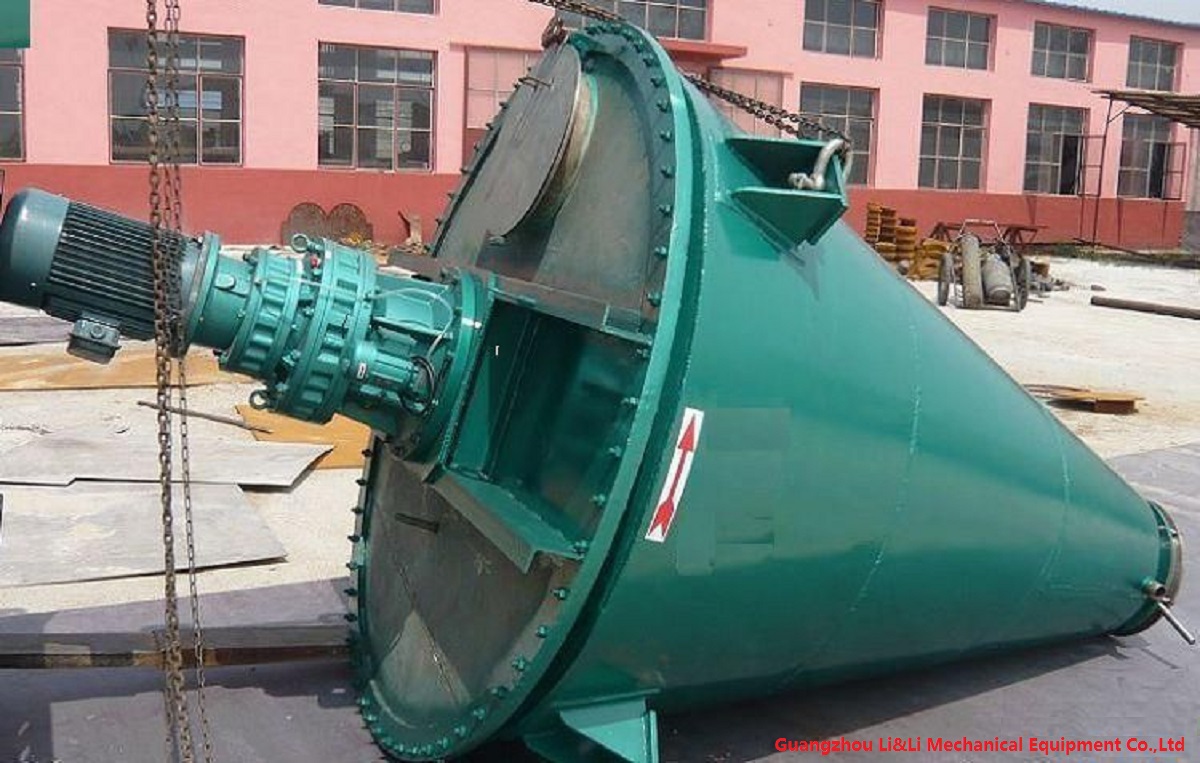

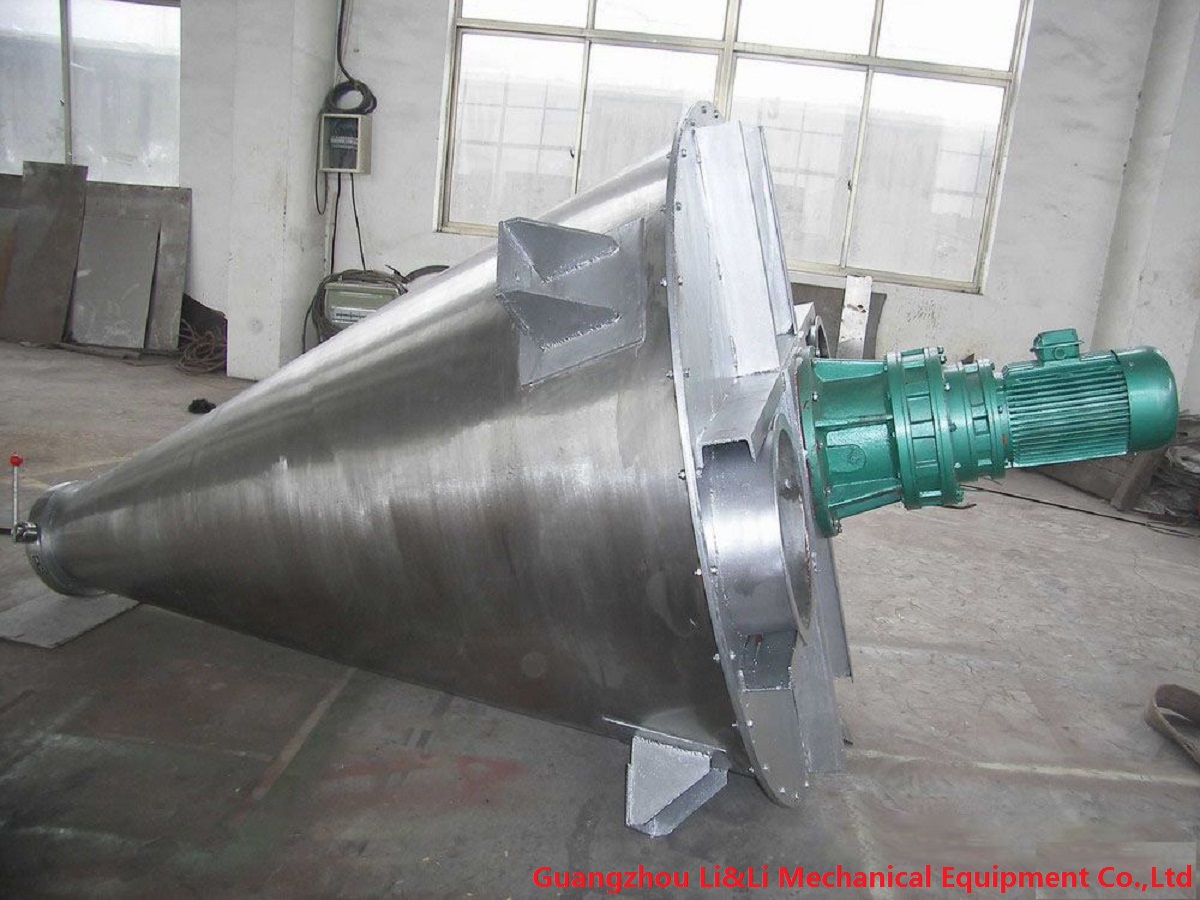

Double Screw Cone Type Mixer
Discribtion

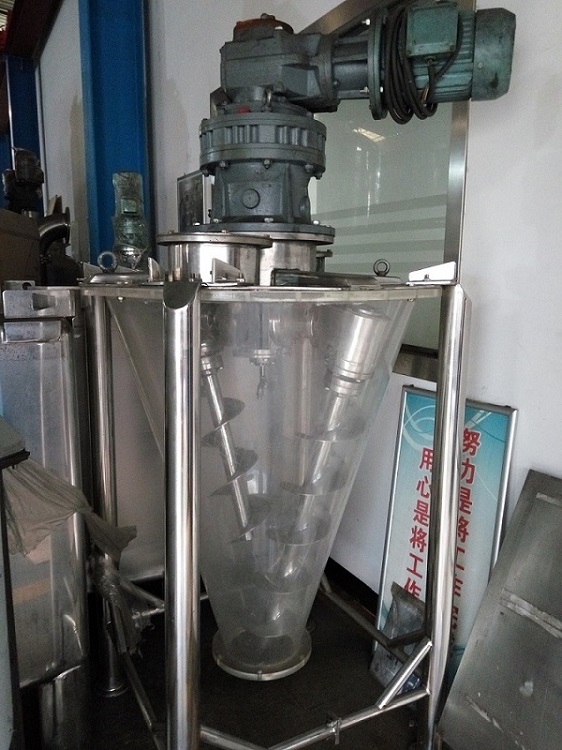

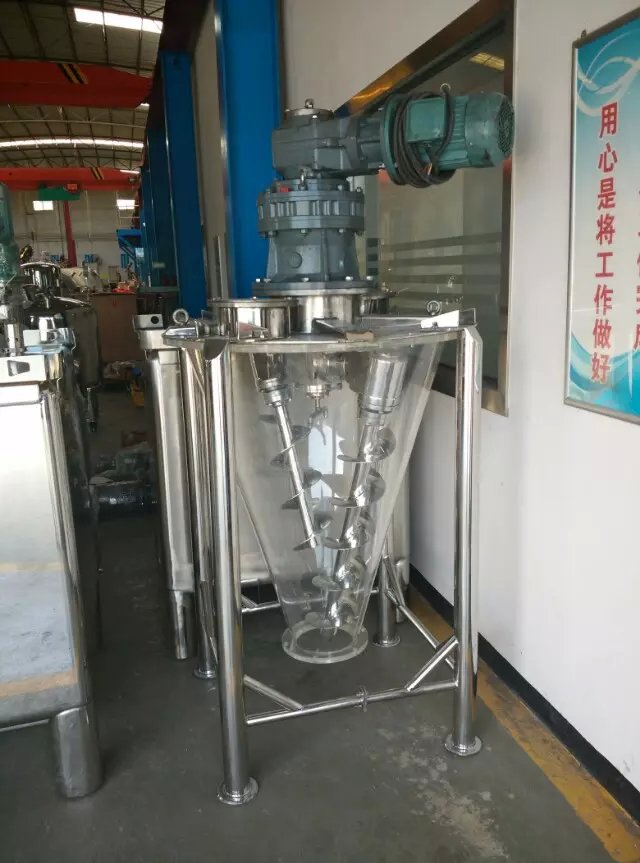

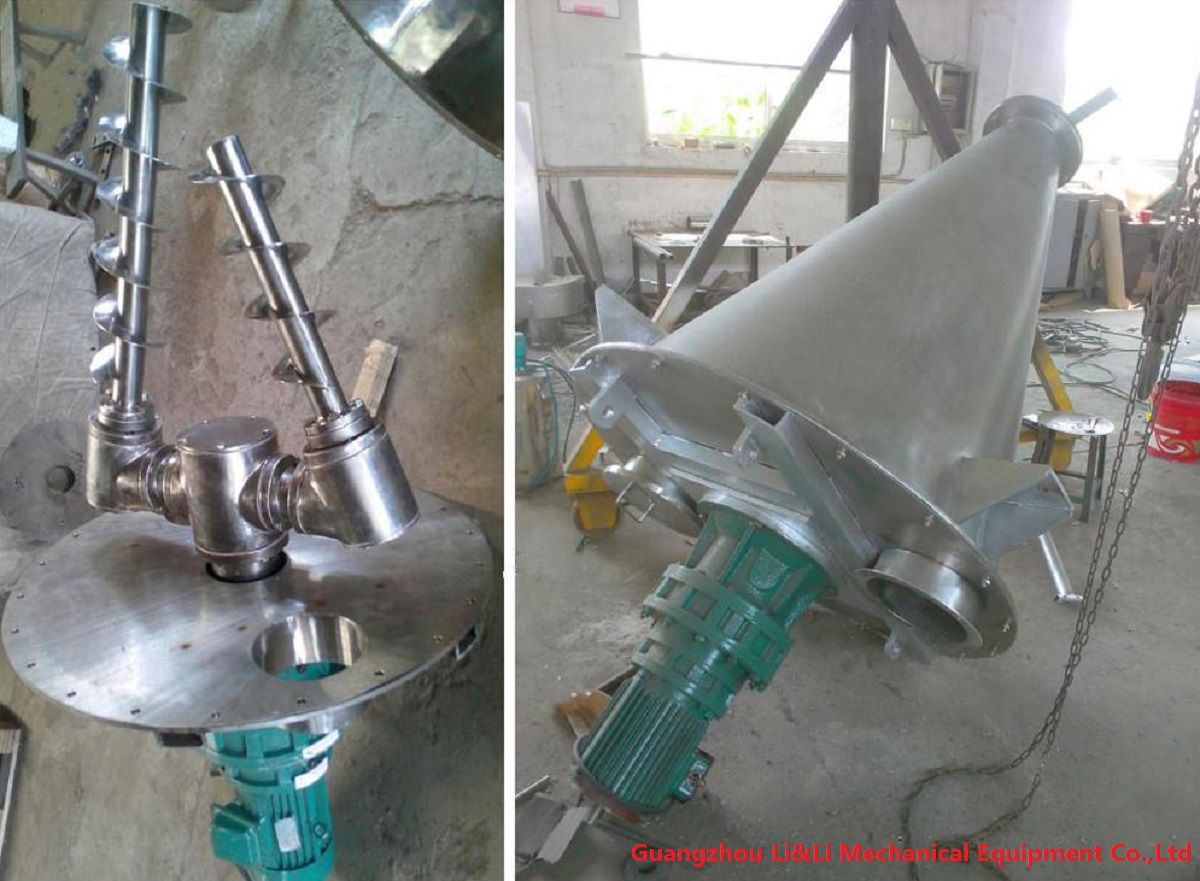

Double screw mixer is convection mixer of high efficiency.It has characteristic of gentle, high accuracy mixing and no damage to product.Two screws suspended from a turning arm, with different rotation semi diameter and different length, make three-dimensional action;Meantime, two screws make self rotation.
Double Screw Helix Cone Mixer Application:
1.Applicable material proportion of the poor, the powder particles are relatively large materials;
2.Suitable for ceramic glaze mixing gentle process, the material particles do not pressure-fed or broken;
3.The heat-sensitive materials will not overheat;
4.In the powder - powder mixing process is very easy to add working conditions or providing a liquid to a plurality of spray outlet means;
5.The bottom valve of dislocation convenient material, since the bottom of the spiral no fixtures, so there is no pressure fed phenomenon
Features:
1.Homogeneous mixing
2.Short mixing time 5-15 minutes
3.Clean discharge & no leftover
4.Central discharge valve:
Electronic, pneumatic, manual (optional)
Ball valve, flap valve, knife gate valve, butterfly valve (optional)
5.Main shaft seal:Stuffing seal and air purge seal
6.Drive:Siemens motor, cycloid or gear reducer
7.Limit/safety switch (optional)
8.Heating/cooling jacket optional)
Mixer Model | Working volume (L) | Rotation speed (rpm) | Motor Power (kw) | Overall Dimension (mm) | Machine Weight (kg) |
| CMPN-50 | 20-30 | 2&108 | 0.75 | Φ600×H1200 | 120 |
| CMPN-100 | 40-60 | 2&108 | 1.1 | Φ700×H1500 | 200 |
| CMPN-300 | 120-180 | 2&108 | 2.2 | Φ900×H2000 | 500 |
| CMPN-500 | 200-300 | 2&108 | 3 | Φ1100×H2300 | 650 |
| CMPN-1000 | 400-600 | 2&60 | 4 | Φ1600×H2700 | 1200 |
| CMPN-2000 | 800-1200 | 2&60 | 5.5 | Φ1900×H3400 | 1550 |
| CMPN-3000 | 1200-1800 | 2&60 | 7.5 | Φ2100×H3700 | 2200 |
| CMPN-4000 | 1600-2400 | 2&60 | 11 | Φ2400×H4400 | 2500 |
| CMPN-5000 | 2000-3000 | 2&60 | 15 | Φ2500×H4600 | 3100 |
| CMPN-6000 | 2400-3600 | 2&60 | 15 | Φ2700×H4900 | 3600 |
| CMPN-8000 | 3200-4800 | 2&60 | 18.5 | Φ2800×H5300 | 4100 |
| CMPN-10000 | 4000-6000 | 2&60 | 22 | Φ3000×H5600 | 4500 |
| CMPN-12000 | 4800-7200 | 2&60 | 22 | Φ3100×H6000 | 4800 |
| CMPN-15000 | 6000-9000 | 2&60 | 30 | Φ3400×H6600 | 5100 |
| CMPN-20000 | 8000-12000 | 2&60 | 45 | Φ3700×H7100 | 6200 |
| CMPN-25000 | 10000-15000 | 2&60 | 55 | Φ3900×H7500 | 7300 |
| CMPN-30000 | 12000-18000 | 2&60 | 75 | Φ4200×H8000 | 8500 |
Mixer Model | Design volume (L) | Load factor | Working condition | Motor Power (kw) | Dimension (mm) | Machine Weight(Kg) | Mixing uniformity |
| DSH-100 | 100 | 0.85 | ATM | 1.5 | Φ750×H1580 | 250 | ≥95% |
| DSH-500 | 500 | 0.85 | ATM | 3 | Φ1150×H2320 | 600 | ≥95% |
| DSH-1000 | 1000 | 0.85 | ATM | 5.5 | Φ1480×H2850 | 1200 | ≥95% |
| DSH-2000 | 2000 | 0.85 | ATM | 5.5 | Φ1820×H3510 | 1500 | ≥95% |
| DSH-3000 | 3000 | 0.85 | ATM | 7.5 | Φ2050×H3800 | 2300 | ≥95% |
| DSH-4000 | 4000 | 0.85 | ATM | 11 | Φ2250×H4480 | 2500 | ≥95% |
| DSH-5000 | 5000 | 0.85 | ATM | 15 | Φ2350×H4720 | 2800 | ≥95% |
| DSH-6000 | 6000 | 0.85 | ATM | 15 | Φ2560×H4980 | 3000 | ≥95% |
| DSH-8000 | 8000 | 0.85 | ATM | 18.5 | Φ2780×H5360 | 4500 | ≥95% |
| DSH-10000 | 10000 | 0.85 | ATM | 18.5 | Φ3020×H5810 | 5500 | ≥95% |
| DSH-15000 | 15000 | 0.85 | ATM | 22 | Φ3460×H6510 | 6800 | ≥95% |
| DSH-20000 | 20000 | 0.85 | ATM | 37 | Φ3810×H7420 | 9800 | ≥95% |
| DSH-25000 | 25000 | 0.85 | ATM | 45 | Φ4090×H7800 | 11000 | ≥95% |
| DSH-30000 | 30000 | 0.85 | ATM | 55 | Φ4350×H8200 | 12500 | ≥95% |
Our Services
1.We are a direct manufacturer and our priority is your complete satisfaction.
2.Logo printing:We can print any logo as per your requires on the case.
3.We take care of each order from start to finish.All emails will be answered in 1 day
4.No matter what's your order quantity, we will offer the same attention to our quality and service
5.Delivery & lead time:All delivery methods are ok, and our lead time is quite short.Usually, our lead time around 7 days, depending on the quantity.
6.Packages:Available for ploy bag and carton box
About us
Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
