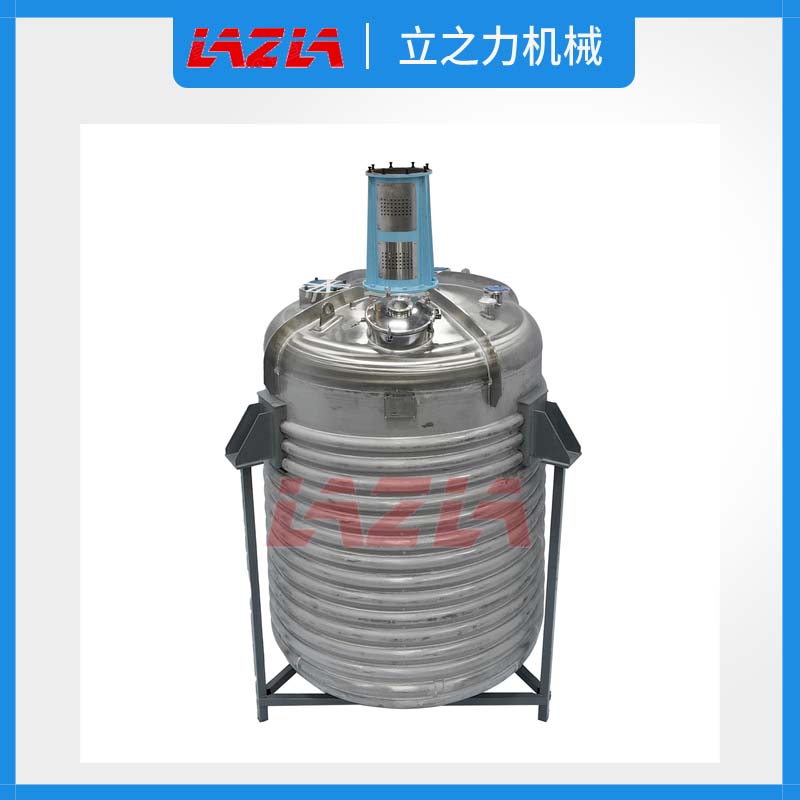

Outer Coil Half-tube Heating Reactor

Internal and external coil heating reactor, external coil half-tube heating stainless steel reactor, internal coil heating reactor
Availability:
Quantity:

The reactor is composed of kettle cover, cylinder body, jacket, stirrer, shaft seal transmission device and support, etc. The kettle body and parts in contact with materials in the reaction kettle are made of OCr18Ni9 or 1Cr18Ni9Ti stainless and acid-resistant steel plate.


Use of reactor: This equipment is suitable for the reaction and concentration of liquid materials in medicine, food, light industry, chemical industry and so on.


Structure and characteristics: according to the nature of the material, the inner pot of the reactor can be made of carbon steel or stainless steel. The material can be heated by electric heating rod, thermal oil, steam and so on. The reaction kettle consists of pot body, pot cover, stirrer and drive shaft, shaft sealing device, transmission device and other auxiliary components.


Operational requirements: heating to warm up slowly, especially the first warming to pay attention to prevent the boiling of oil vapor and water vapor. No material in the pot empty pot, not to open the thermal power supply, heating oil jacket test drive. Circulating thermal oil heating can not be replaced by steam heating.

反应釜3

Parameters of stainless steel reaction kettle with external coil heating:

Specification Actual capacity(L)

Tank diameter (m²)

Outer coil heat transfer area(m²)

Inner coil heat transfer area

(m²)

Motor power(KW)
500L 550 900 2.438 2 2.2
1000L
1100
1100 2.867 2.6 4
1500L
1650
1200
3.537
3.1
4
2000L
2200
1300
4.165
3.8 5.5
3000L
3300
1500
5.569
5.4 7.5
6000L
6600
1800 10.323
8.7 15
10000L 11000
2200
50.345
10.9
22
20000L
22000
2400
101.679
13.8
55

Jacket heating type is divided into electric heating rod heating, steam heating, thermal oil circulation heating.


Shaft sealing device is divided into packing seal and mechanical seal.


Stirring type is anchor type, slurry type, pot wheel type, push type or frame type.


The number of openings, specifications or other requirements can be designed and produced according to user requirements.
